IGBT Control CVD Furnace Advanced Ceramic Coating Deposition Device Customization

Name: IGBT Control CVD Furnace Advanced Ceramic Coating Deposition Device Customization
Brand: Nuotian
Price: 80000 USD

Buy cheap IGBT Control CVD Furnace Advanced Ceramic Coating Deposition Device Customization product

Brand Name : Nuotian

Model Number : NTI-CJL-196L

Certification : CE

Place of Origin : Hunan, China

MOQ : 1 Set

Price : $80000-100000

Payment Terms : T/T

Supply Ability : 20 Sets/ Month

Delivery Time : 90 Days

Packaging Details : Standard Packing by Sea

type : Induction Furnace

Power supply control type : IGBT control

usage : Heat Treatment Furnace

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC

voltage : 380V

dimension(l*w*h) : Customization

weight (t) : 2

warranty : 1 Year

key selling points : Accurate Temperature Control

After-sales Service Provided : Engineers available to service machinery overseas

Model no. : NTI-CJL-196L

Maximum temperature : 2500 degree celsius

Power : 200KW

Input voltage : 380V

Working area : D*500*1000mm

Working environment : Vacuum, Argon, Nitrogen atmosphere protection

Furnace type : Vertical

Contact Now

IGBT Control CVD Furnace Advanced Ceramic Coating Deposition Device Customization

Description:

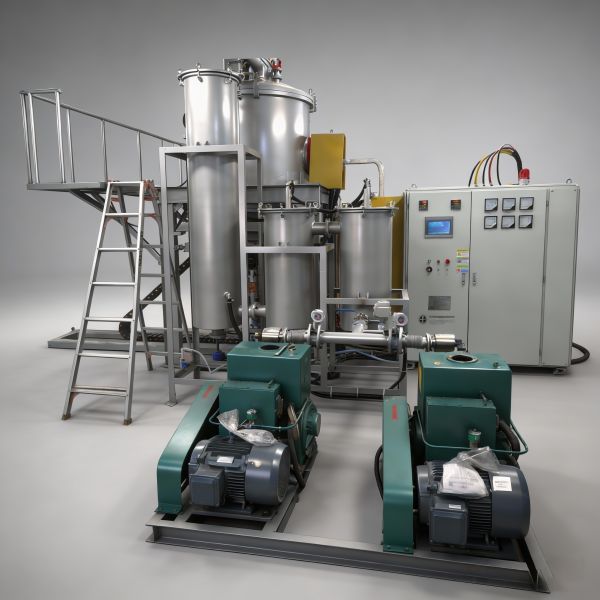

This vertical deposition furnace is purpose-built for ultra-high-temperature (up to 2500°C) processing of specialty ceramics and carbon-based materials. It leverages intermediate-frequency induction heating technology, paired with an IGBT-based power control system that delivers significant energy savings and reduces operational costs.
Fitted with imported high-precision infrared temperature sensors and advanced temperature controllers, it guarantees consistent, accurate temperature regulation throughout the entire process. The integrated exhaust gas collection system enables one-step completion of both sintering and debinding operations, drastically boosting production efficiency while cutting energy use.
Boasting a space-saving, visually refined design and industry-leading low energy consumption, this furnace is custom-engineered to satisfy the stringent process demands of advanced material manufacturing, making it ideal for R&D labs and industrial production lines alike.

Application:

This vertical type vacuum CVD furnace (batch-type induction design) is dedicated to CVD processing for the following materials:

Carbon-carbon (C/C) composites
Carbon composite materials
Graphite components

Specification:

CVD Furnace -- Technology Parameter
		Production usage
		NTI-CJL-42L	NTI-CJL-100L	NTI-CJL-196L	NTI-CJL-339L	NTI-CJL-803L
Working size	mm	φ300×600	φ400×800	φ500×1000	φ600×1200	φ800×1600
Heating type	/	IF induction heating
Control type	/	IGBT control
HT zone capacity	L	42	100	196	339	803
Overall Dimension	mm	5000x6000	5500x6500	6000x7000	6500x7500	7000x8000
Loading weight	g	HT zone capacity×density (g/cm³)×1000 Remark:1L=1000cm³
IF power	Kw	100	150	200	250	30
Ultimate vacuum	Pa	50
Max.working temperature	℃	2500	2500	2500	2500	2500
Vapor deposition temperature	℃	Wthin 2000 ℃	Wthin 2000 ℃	Wthin 2000 ℃	Wthin 2000 ℃	Wthin 2000 ℃
Temperature uniformity	℃	±5	±5	±10	±10	±10
Working environment	/	Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure)
Vapor deposition environment	/	300-3000pa air pressure, charging into CH3CH2CH3, CH4, C3H6

Furnace Configuration:

Control System: Optional 1-to-1 (one control cabinet for one furnace), equipped with Delta PLC for stable, intelligent operation.

Key standard & optional components:

Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
Temperature Measurement: Equipped with Raytek (US) infrared thermometer for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2500℃).
Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.

Feature Advantages:

Precise Temperature Control: Imported thermometers & controllers ensure high accuracy and stability.
Energy-Efficient Design: Integrated exhaust collection system + low empty furnace power cuts energy costs.
Customized Protection: Multi-alarm functions (water shortage, overcurrent) enhance operational safety.
Flexible Gas Control: Separate flow regulation for 3 gases (argon/nitrogen/propylene) adapts to diverse processes.
Compact & Practical: Vertical structure + aesthetic design saves space while meeting industrial production needs.

After-sales Service:

We provide comprehensive after-sales support to ensure your equipment operates smoothly:

Warranty: 1-year warranty for core electrical components against manufacturing defects.
Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
